Ref. No. : 6KGP43005X9XXXA1 | Cat. No. : 6KGP43005X9XXXA1

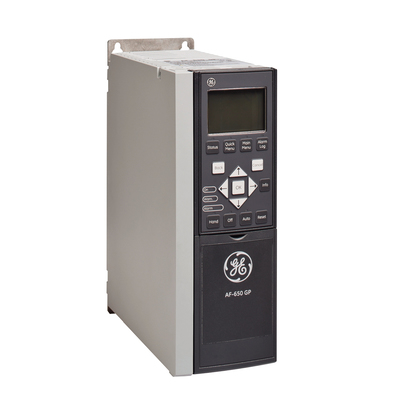

Description: AF-650 GP Drive 3ph 400V 4kW IP20
EAN:
- Available up to 37kW @ 230V, up to 800kW @ 400V, and up to 1000kW @ 690V
- Compliance with major international standards CE, UL, cUL, EAC, C-Tick Self protecting features
- Built-in DC link reactor ensures very low harmonic disturbance of the power supply
- Designed for ambient temperatures up to 50°C
- 150% current overload up to 1 minute
- 24V encoder feedback built-in
- Advanced brake control
- Modbus RTU built-in
Descriptors
|
Category |
AF-6 Series - Drives |
|
Family |
AF-650 GP General Purpose Adjustable Frequency Drive |
Specifications
|
Main Voltage |
380-500 Vac |
|
Power (KW) |
4 |
|
Phase |
3 |
|
Number of phases input |
3 |
|
Number of phases output |
3 |
|
Light Duty: Motor Power (KW) |
4 |
|
Light Duty: Motor Power (HP) |
5 |
|
Heavy Duty: Motor Power (KW) |
4 |
|
Heavy Duty: Motor Power (HP) |
5 |
|
Light Duty: Output Current (A) |
10 |
|
Heavy Duty: Output Current (A) |
10 |
|
Protection Degree |
IP20 |
|
Extra Conformal Coating (3C3) |
No |
|
Supporting protocol for Modbus RTU |
Yes |
|
Supporting protocol for CANopen |
No |
|
Supporting protocol for BACnet |
No |
|
Supporting protocol for PROFIBUS |
Yes |
|
Supporting protocol for PROFINET IO |
Yes |
|
Supporting protocol for TCP/IP |
Yes |
|
Supporting protocol for EtherNet/IP |
Yes |
|
Supporting protocol for DeviceNet |
Yes |
|
Drive Unit Size |
12 |
|
Logo |
GE |
|
Country of Origin |
DK |
|
Height (mm) |
270 |
|
Width (mm) |
90 |
|
Depth (mm) |
205 |
Classifications
|
UNSPSC |
39122001 |
|
ETIM 6.0 |
EC001857 - Frequency converter =< 1 kV |
|
ETIM 7 |
EC001857 - Frequency converter =< 1 kV |
|
Approvals |
CE |
|
RoHS Indicator |
Yes |
Dimensions
|
Weight (kg) |
4,9 |
Package Information
|
Package height (mm) |
375 |
|
Package width (mm) |
91,5 |
|
Package depth (mm) |
221 |
|
Package weight (kg) |
5 |
|
Standard packing |
1 |
