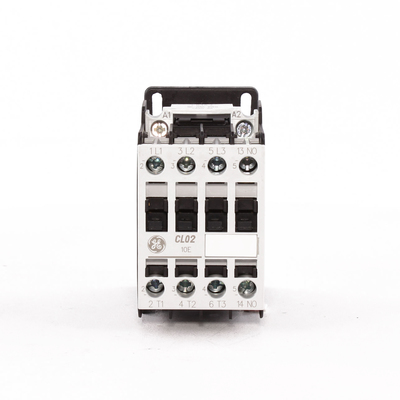

Catalog No. : CL02A310TJ
Description: SERIES CL-Contactor
UPC: 801701804113
IEC Contactors. C-2000 Nonreversing and Reversing. AC Controlled, 3-Pole. HP Ratings AC-3 Duty. 5-75 Hp (460V) Nonreversing Standard Terminals. Maximum Current @ 460 V (A) AC-3: 17.5A. 1-Phase HP @60 Hz, 115V: 1. 1-Phase HP @60 Hz, 230V: 3. 3-Phase HP @60 Hz, 200V: 5. 3-Phase HP @60 Hz, 230V: 5. 3-Phase HP @60 Hz, 460V: 10. 3-Phase HP @60 Hz, 575V: 15. KW @ 50 Hz, 380/415V: 7.5.
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
Contactor |
|
GO Schedule |
C2 |
Specifications
|
Contacts |
1NO |
|
Coil Voltage |
110 (50 Hz) / 120 (60 Hz) |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
