Catalog No. : R011C010U

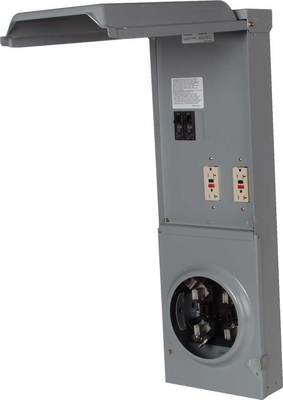

Description: 100A SURFACE MTRD 20/20GFCI
UPC: 784567205527
Midwest Electric’s RV Equipment are a means of providing power required by various RV Parks.RV Equipment offer one or more receptacles, with overcurrent protection, optional metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.
View More
View Less
For more info visit:
midwestelectric.com
Descriptors
|
Category |
Surface - Metered |
Specifications
|
Heads |
1 |
|
Mounting |
Surface |
|
Amps |
100.0 A |
|
Metering |
Ringless |
|
Receptacles |
(2) 5-20WR2GFCI |
|
Feed |
Underground |
|
Installed Breaker |
(2) CB120 |
|
AIC |
10,000 |
|
Cabinet Size |
9 X 30U |
|
Circuit Protection |
Yes |
|
Hub Provision |
No |
|
Load Center |
LC33N1 |
|
Loop Feed |
Yes |
|
Phase |
1 |
|
Unit Weight |
21.0 lb |
|
Volts |
120/240 |
Classifications
|
Stock Class Code |
Stock |
Approvals
|
Certification |
UL/CUL |
| Title | Publication No. | Publication Type |
|---|---|---|
|
Midwest Temp Site Power 100A Metered Ring (2) 20A GFCI Outline Drawing Midwest Temp Site Power 100A Metered Ring (2) 20A GFCI Bottom 120V 1PH G90 N3R Outline Drawing |
R011C010U |
Drawings-Outline and Dimensional |
| 1TQC153600E0001 Rev. F |
MET-019 |
Brochures |
| This brochure highlights the most popular products sold during storm season. Rev D |
MET1005 |
Brochures |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
