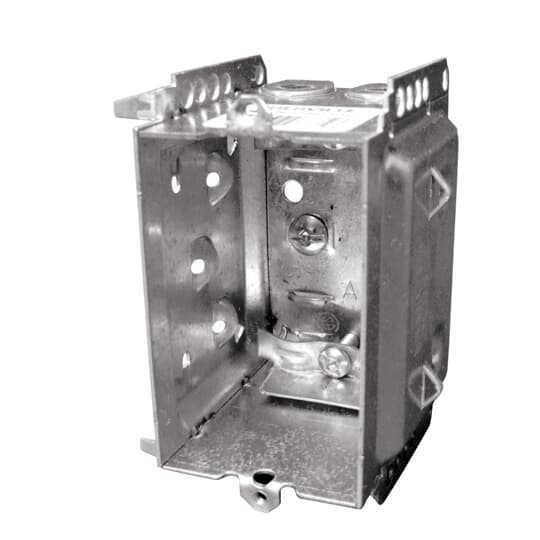

Catalog No. : BC2304-LHTQ
Description: DVICE BOX 2-1/2IN DEEP 1G 14.5CU IN
UPC: 622538077356
Made or assembled in Canada. With their additional cubic capacity, this family of boxes is designed for any installations that require a greater number of conductors such as heating, GFCI and arc-fault applications. What's more, because it's an LHTQ, installation is always fast and accurate. Look for these practical and time saving features on all LHTQ models.
- Made or assembled in Canada.
Descriptors
|
Category |
Switch box |
|
Application |
Armoured and Nonmetallic Sheathed Cable Clamps |
Specifications
|
Material |
Steel |
|
Color |
Silver |
|
Cubic Capacity |
14.5 cu in |
|
Number Of Outlet |
1 |
Classifications
|
Brand Name |
Iberville |
|
Standard |
CSA 5043 |
Dimensions
|
Size |
3 Inches Height x 2 Inches Width x 2-1/2 inches depth |
Certification/Standard
| CLASS | File Number | Class | CCN | Certificate Number | Library Number |
|---|---|---|---|---|---|
| CSA | 5043 | 441101 | N/A | 1389047_2013-05-17 | N/A |
|
Assembly arrangement |
Surface mounted housing |
|
Mounting direction |
Vertical |
|
Material |
Metal |
|
Colour |
Silver |
|
Transparent |
N |
|
Width of device |
50.8 mm |
|
Height of device |
76.2 mm |
Documents/Support Tools
|
Sales Drawing |
