Ref. No. : 730135 | Cat. No. : 027/061416-201

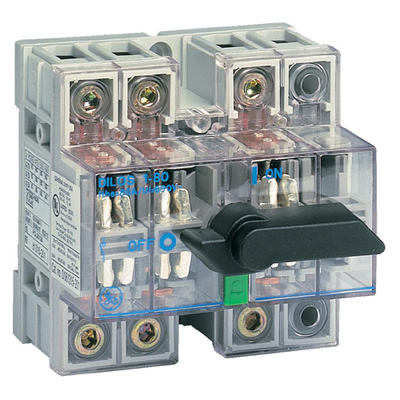

Description: Switch-disconnector Dilos 1 100A 4P
EAN: 3390207301350
Performance
- DIN-rail type and wall mounting type
- Safety-switch-disconnector (main disconnector)
- Disconnect function
- Visible contact indication - transparent contact cover
- Quick make and quick break mechanism
- Independent opening and closing
- Positive contact indication (PCI)
- Double knife contacts - high short-circuit resistance
- Number of poles 2P - 3P - 4P
- Box terminals with inbus screws
- Padlockable
IEC 60947-1 and IEC 60947-3, DIN VDE 0660 Teil 107,BS EN 60947-3, CEI 17-11 (Fasc. 1039), EN 60947-3, NBN EN 60947-3, NF C 63-130, UL 508 Safety-switch-disconnector (red/yellow) according to DIN VDE 0113 Teil 1
Descriptors
|
Category |
Loadbreak Disconnector |
Specifications
|
Series |
Switch-disconnectors - DILOS |
|
Conventional enclosed thermal current Ithe = Ith |
100 A |
|
Number of poles |
4P |
|
Type of disconnector |
Switch-disconnector |
|
Contact position indication |
Visible contact position indication |
|
Mounting |
DIN-rail |
|
Type of Dilos/Fulos |
DILOS 1 |
|
400/415V (AC23A/AC23B) |
80 A |
|
500V (AC23A/AC23B) |
50 A |
|
690V (AC23A/AC23B) |
40 A |
|
400/415V (AC22A/AC22B) |
100 A |
|
500V (AC22A/AC22B) |
100 A |
|
690V (AC22A/AC22B) |
63 A |
|
400/415V (AC21A/AC21B) |
100 A |
|
500V (AC21A/AC21B) |
100 A |
|
690V (AC21A/AC21B) |
100 A |
|
110V (DC23A 2P) |
100 A |
|
250V (DC23A 4P) |
100 A |
|
Rated operational voltage Ue (V) |
690 V |
|
Rated impulse withstand voltage (2000 m) Uimp |
8 kV |
|
Standards |
BSNBNEN60947-3 |
|
Conventional enclosed thermal current lthe |
100 A |
|
Maximum torque on terminals (Nm) |
12 Nm |
|
Rated insulation voltage Ui (V) |
690 V |
|
Durability (number of operational cycles) electrical |
1500 |
|
Max Rated Operational Power 400/415V (AC23 (kW)) |
44 kW/46 kW |
|
Max Rated Operational Power 500V (AC23 (kW)) |
35 kW |
|
Max Rated Operational Power 690V (AC23 (kW)) |
36 kW |
|
Rated capacity power at 400V (kVAR) |
50 kVAr |
|
Rated short circuit making cap Icm (kA peak) Ue = 400V |
10 kA |
|
Rated short circuit making cap Icm (kA peak) Ue = 415V |
10 kA |
|
Rated short circuit making cap Icm (kA peak) Ue = 500V |
6.7 kA |
|
Rated short circuit making cap Icm (kA peak) Ue = 690V |
6.7 kA |
|
Rated short time withstand current Icw (kA rms) 1 s |
3 kA |
|
Rated short time withstand current Icw (kA rms) 0.25 s |
6 kA |
|
Durability (number of operational cycles) mech. (min.) |
20000 |
|
Terminal capacity (Cu) min/max (mm²) |
6 mm²/50 mm² |
|
Rated Cond S/C current Backup protection kA rms @ 400V |
50 kA |
|
Rated Cond S/C current Backup protection kA rms @ 415V |
50 kA |
|
Rated Cond S/C current Backup protection kA rms @ 500V |
50 kA |
|
Rated Cond S/C current Backup protection kA rms @ 690V |
33 kA |
Classifications
|
Approvals |
KEMA |
|
ETIM 5.0 |
EC000216 - Switch disconnector |
|
ETIM 6.0 |
EC000216 - Switch disconnector |
|
ETIM 7.0 |
EC000216 - Switch disconnector |
Dimensions
|
Weight |
0.590 kg |
