Catalog No. : PEHE5ATTS0250

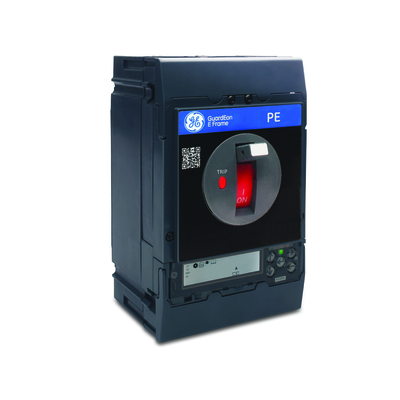

Description: GuardEon IEC CB PE250E 4P3,5T Thermal Mag for Line 250A
UPC:
High current limiting for optimized selectivity
Versatile design with rotating nameplate
Field replaceable and upgradeable trip units
Full array of field installable accessories
Common internal accessories across all sizes
Descriptors
|
Category |
GuardEon* |
Specifications
|
Logo |
GE |
|
Series |
Circuit breaker (complete breaker) |
|
For Trip Unit- In (A) |
250 |
|
Number of Poles |
4 |
|
Trips |
4 trips neutral 50% rated |
|
Frame type |
E frame |
|
Rating frame (A) |
250 |
|
Short-circuit capacity (kA) |
Effective 36 kA |
|
Trip Unit |
Line protection (thermal magnetic) |
|
Ui (V) |
750 |
|
Country of Origin |
USA |
|
Electrical Standard |
IEC |
|
Ir min (A) |
200 |
|
Ir max (A) |
250 |
|
IEC 230VAC (kA) |
65 |
|
IEC 250VDC (kA) |
25 |
|
IEC 400VAC (kA) |
36 |
|
IEC 440VAC (kA) |
36 |
|
IEC 500VAC (kA) |
30 |
|
IEC 500VDC (kA) |
25 |
|
IEC 690VAC (kA) |
22 |
|
IEC 690VAC Ics (kA) |
17 |
|
IEC 690VAC Icu (kA) |
22 |
|
Im min (A) |
1250 |
|
Im max (A) |
2500 |
|
Rated voltage min (V) |
230 |
|
Rated voltage max (V) |
690 |
|
Integrated earth fault protection |
No |
|
Type of electrical connection of main circuit |
Bolt connection |
|
Device construction |
Complete device in housing |
|
Suitable for DIN rail (top hat rail) mounting |
No |
|
Number of auxiliary contacts as normally closed contact |
0 |
|
Number of auxiliary contacts as normally open contact |
0 |
|
Number of auxiliary contacts as change-over contact |
0 |
|
With switched-off indicator |
Yes |
|
With under voltage release |
No |
|
Position of connection for main current circuit |
Front side |
|
Type of control element |
Toggle |
|
Motor drive optional |
Yes |
|
Motor drive integrated |
No |
|
Ingress Protection(IP Rating) |
IP65 |
|
Complete device with protection unit |
Yes |
|
DIN rail (top hat rail) mounting optional |
Yes |
|
Height (Inches) |
6.69 |
|
Width (Inches) |
5.51 |
|
Depth (Inches) |
3.74 |
Classifications
|
ETIM 6.0 |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|
Approvals |
CE - IEC |
|
RoHS Indicator |
Yes |
Dimensions
|
Weight (lb) |
4.41 |
Package Information
|
Standard packing |
1 |
|
Package height (in) |
6.25 |
|
Package width (in) |
9.5 |
|
Package depth (in) |
8 |
|
Package weight (lb) |
4.63 |
