Ref. No. : 113243 | Cat. No. : CSC30A310U

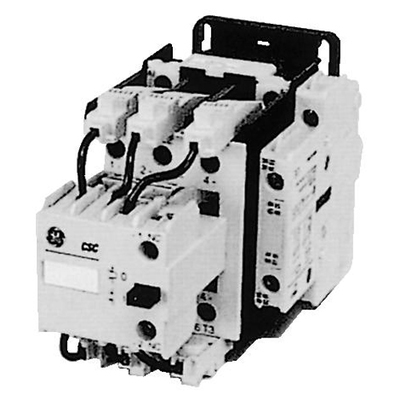

Description: Contactors capacitors switching 30kVAr at 400V contr. Circ. 380-400V/50Hz|440V/60Hz, 1NO
EAN: 8425095132436
- "CSC" contactors incorporate a frontal block with three early-make auxiliary together with 6 quick discharge resistances (two per phase) through which the capacitors are switching to the network, reducing the current peak. Once the resistances have damped the current peak, the main contact short-circuits the resistances, carrying the uninterrupted current. A few milliseconds later the early-make auxiliary contact drops the guarantee that all current flows through the main contacts.
- Storage temperature: -50°C…+80°C
- Operation temperature: -25°C…+55°C (without derating)
- Altitude to 3000m: nominal values
- Mounting positions: vertical mounting +-90° w/o C
Descriptors
|
Category |
Series CSCN - Contactors designed for capacitor switching application |
Specifications
|
Range |
Contactor with built-in resistance to switch three phase capacitor banks |
|
Control circuit |
AC |
|
Frequency Coil voltages: alternating current |
50 Hz / 60 Hz |
|
Fuse: gI-gG |
63 A |
|
Ambient temperature: <= 55°C 230V-240V |
20 kVAr |
|
Ambient temperature: <= 55°C 400V |
30 kVAr |
|
Ambient temperature: <= 55°C 415V |
31 kVAr |
|
Ambient temperature: <= 55°C 500V |
38 kVAr |
|
Ambient temperature: <= 55°C 660V-690V |
35 kVAr |
|
Ambient temperature: <= 70°C 230V-240V |
16 kVAr |
|
Ambient temperature: <= 70°C 400V |
22 kVAr |
|
Ambient temperature: <= 70°C 415V |
23 kVAr |
|
Ambient temperature: <= 70°C 500V |
27 kVAr |
|
Ambient temperature: <= 70°C 660V-690V |
25 kVAr |
|
Series |
Series CSC-contactors |
Classifications
|
ETIM 5.0 |
EC001079 - Capacitor contactor |
|
ETIM 6.0 |
EC001079 - Capacitor contactor |
|
ETIM 7 |
EC001079 - Capacitor contactor |
Dimensions
|
Weight |
0.646 kg |
