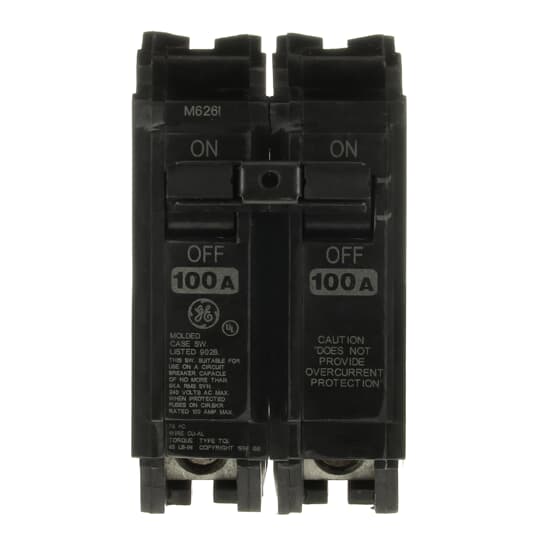

n° de catalogue : TQL22Y100

Description:  INTERRUPTEUR QL 2P 240V 100A

CUP: 783164188844

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. Y100 Amps 100 A
Afficher plus Afficher moins

Descripteurs

Catégorie

Q-Line Miniature Circuit Breakers

Product Line

Q-Line (Plug-In)

GO Schedule

R5

Spécifications

Frame Type

Q-Line

Amperage

100 A

System Voltage

120 Vac
120/240 Vac
240 Vac

Poles

2

Trip Function

Switch

Continuous Current Rated

Standard

120 Vac Interrupting Rating

5 KAIC

120/240 Vac Interrupting Rating

5 KAIC

240 Vac Interrupting Rating

5 KAIC

Suitable for Reverse Feed

Yes

Long Time

No

Protective Relays

No

Current Metering

No

GSA Compliance

No

Classifications

UL File #

E11592
