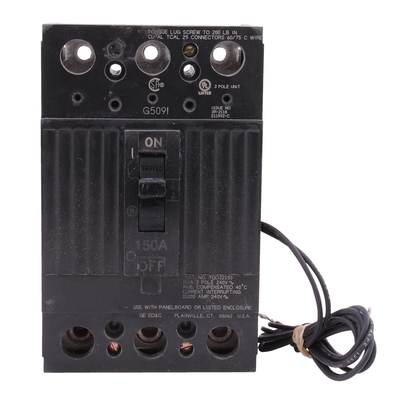

Image représentative

n° de catalogue : TQD32150ST1

Description: TQD 3P 150A 10KA LOAD LUGS W/SHUNT TRIP

CUP: 783164179088

The TQD Line of devices include thermal magnetic molded case circuit breakers and molded case switches. The devices are complete with Cu/Al line and load lugs. 3P 240V 10KIC 150A C.B. W/SHNT TRIP

Afficher plus Afficher moins

Pour plus d’informations, visitez: https://search.abb.com/library/Download.aspx?DocumentID=9AKK108467A9438&LanguageCode=en&DocumentPartId=&Action=Launch

Descripteurs

Catégorie	Thermal Magnetic
Product Line	Thermal Magnetic
GO Schedule	EF

Spécifications

Trip Style	Non-Interchangeable
Poles	3
Amperage	150 A
System Voltage	120 Vac 120/240 Vac 240 Vac
Frame Type	Q-Line
120 Vac Interrupting Rating	10 KAIC
120/240 Vac Interrupting Rating	10 KAIC
240 Vac Interrupting Rating	10 KAIC
Trip Function	LI
Continuous Current Rated	Standard
Suitable for Reverse Feed	Yes
Lugs	TCAL25
Long Time	Fixed
Instantaneous	Fixed
Current Metering	No
Protective Relays	No
Special Markings	HACR
GSA Compliance	No

Classifications

UL File #

E11592
