Alternate Catalog No. : SS1 2 RN 750K
n° de catalogue : SS12RN750K
Description: PIN KIT TRIPLEX BLOCK NEUT ASSY
CUP: 75114276931

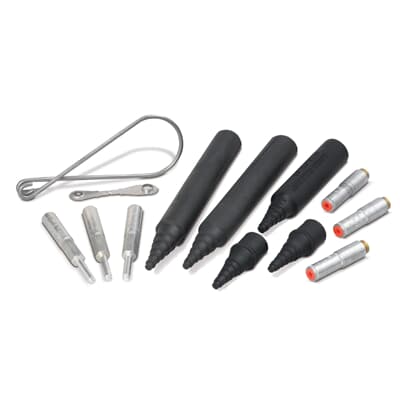

Storm Safe Breakaway Service Entrance Kit - Single Service and Reduced Neutral, Triplex Block for #2, #2 and #4, Dual Rated for Aluminum or Copper, 750 pound Break Force. Includes Insulating (Two Long Rockets, One Short Rocket, Two Caps), One Breakaway Link Bail, One Stainless Steel Link - SSL 750, Three Copper Pin Terminals with Grease and Capped, Three Female Connectors/Couplers (Uses Dies TU 52 BG 243 5/8) with Compound and Caps.
Afficher plus
Afficher moins
Pour plus d’informations, visitez:
tnb.ca.abb.com/fr/
- Downed-Line Safety - Separates at the Pole, not the Weatherhead, so the Line Always Comes Down De-Energized
- Crew-Safety - The Correction is Made Well Below the High-Voltage Bushings, Making it Safer for Crews to Work During a Storm Outage
- Quick Restoration of Power by Simply Replacing the Mechanical Breakaway Link and Re-Inserting the Contacts
- Disconnect Service without Pulling the Meter
- Dual-Rated for Use with Aluminum and Copper Conductors
- Internal O-Ring Prevents Moisture Ingress into the Contact, and External Flood-Seal Insulating Rockets Seal the Entire System from the Elements
- Meets ANSI C119.4-2004 Specifications
Descripteurs
|
Catégorie |
Cosses débranchables |
Spécifications
|
Matériau |
Acier inoxydable |
|
Fini |
nu |
|
Isolation |
Insulating Rockets and Caps |
|
Connexion |
Compression |
Classifications
|
Marque de produit |
Homac |
|
Standard |
ANSI C119.4 |
Dimensions
|
Calibre de fils |
#2, #2, #4 |
