n° de catalogue : K650LK-C

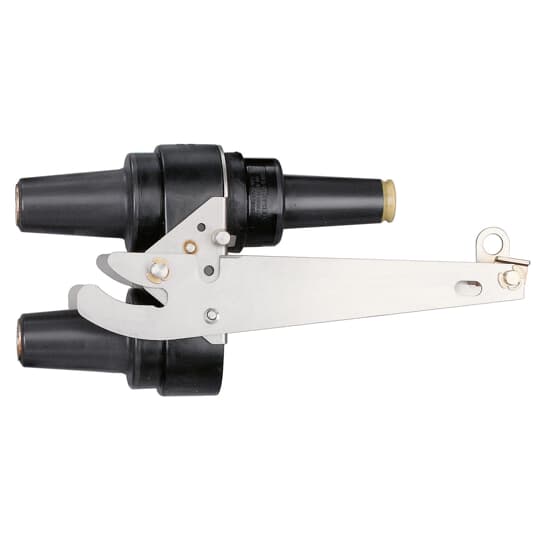

Description: CAM-OP LINK
CUP: 783786022014
Descripteurs
|
Catégorie |
Accessoires pour câbles |
|
Caractéristiques spéciales |
25kV, 600 Amp Deadbreak Rated Cam-Op Link. Provides 200 Amp tap for test and ground connections. 100 percent Peroxide-cured insulation. Cam-Op lever for hotstick operation and easy install/remove. |
|
Application |
Designed to use pin and socket connectors to provide a visible open on a primary cable system. After testing and grounding the Cam-Op Link is removed providing a visible open. The K650LK-C Cam-Op system can be used to retrofit to existing equipment. The K650LK-C allows hotstick operations to be completed without moving the cable. The Cam connect/disconnect lever allows for easy installation or removal by hotstick. The K650LK-C provides a 200 Amp Loadbreak interface on top for testing and grounding purposes. |
Spécifications
|
Matériau |
EPDM caoutchouc |
Classifications
|
Marque de produit |
Elastimold |
|
Standard |
ANSI/IEEE Standard 386. |
Dimensions
|
Grosseur |
3.50 inch (88.9 mm) Diameter, 7.50 inch (190.5 mm) wide, 12.28 inch (312.0 mm) High (not counting Cam-Op Lever). 4.00 inch (101.6 mm) Center Plug to Center Plug. |
Documents/outils d'aide
|
Dessin de vente |
