Alternate Catalog No. : ASL 600 NK

n° de catalogue : ASL600NK

Description:  AL 2HOLE NEMA LUG W/STACK 600 550

CUP: 75114119115

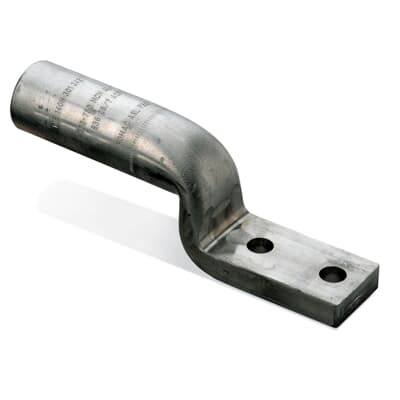

Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 600 N) and a Stacking Two-Hole NEMA Lug (ASL 600 N). 600 kcmil AL-CU, 550 kcmil, ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16, 115H, 786, 936, 473.
Afficher plus Afficher moins
Pour plus d’informations, visitez:  tnb.ca.abb.com/fr/
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Descripteurs

Catégorie

Connecteurs de fils

Caractéristiques spéciales

Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.

Application

General Purpose Lugs for Aluminum and Copper Terminations

Spécifications

Connexion

Compression

Matériau

Aluminium

Fini

nu

Isolation

non isolee

Classifications

Marque de produit

Homac

Standard

ANSI C119.4

Dimensions

Grosseur

7-3/4 inch long

Calibre de fils

550 to 600 kcmil , 477 (26/7) ACSR AWG , 556.5 (18/1) ACSR AWG
