Alternate Catalog No. : ABW 40-66-1
n° de catalogue : ABW40-66-1

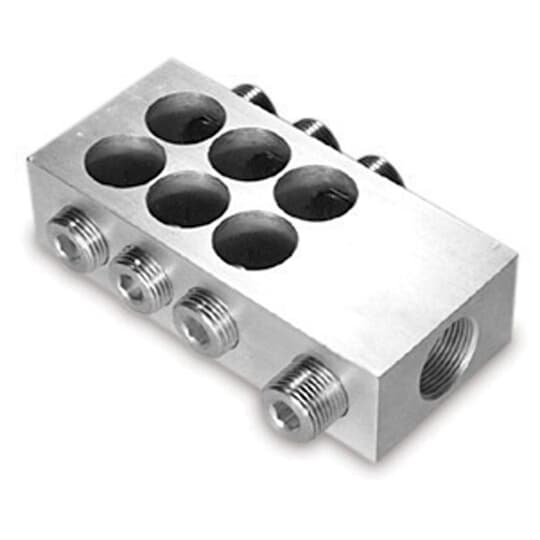

Description: AL Qdisc TFR Conn 6 Pos 6-250 MCM
CUP: 783786689378
- High-Strength Aluminum Alloy Maintains Constant Bolting Pressure on Conductors
- Dual-Rated for Aluminum or Copper Conductors
- Quick Disconnectability for Easy Removal from Transformer Secondary Studs
- Ball-Bottom Screws Endusre Maximum Conductor Contact Pressure and Break up Interstrand Oxides
- Meets or Exceeds ANSI C119.4 Specifications
- RUS Accepted
Descripteurs
|
Catégorie |
Connecteurs électriques distribution souterraine |
|
Caractéristiques spéciales |
Double Row Bar Series. Dual Rated for Aluminum and Copper Conductors. High Strength Aluminum Alloy maintains constant bolting pressure on Conductors. Quick Disconnectability for easy removal from transformer secondary units. Ball-bottom screws ensure maximum conductor contact pressure and break up interstrand oxides. |
|
Application |
Stud Mount Transformer Connector |
Spécifications
|
Connexion |
Mécanique |
|
Calibre de conducteur |
#6 to 250 kcmil |
|
Nombre de conducteurs |
6 |
|
Matériau |
Aluminium |
|
Isolation |
non isolee |
Classifications
|
Marque de produit |
Homac |
|
Standard |
ANSI C119.4 |
