n° de catalogue : 373J2

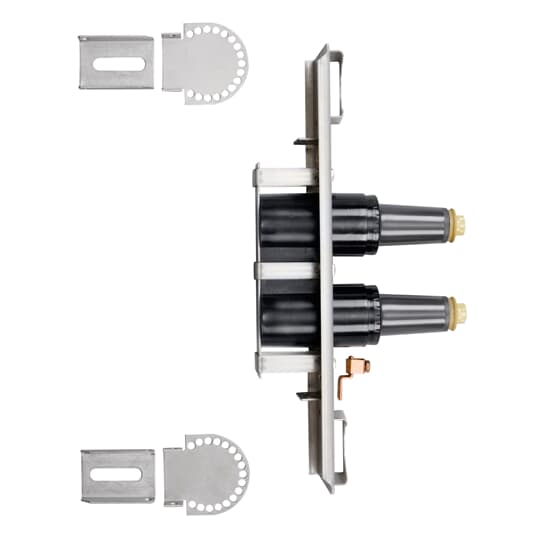

Description: LB 2-POINT JUNCTION
CUP: 783786648672
Descripteurs
|
Catégorie |
Accessoires pour câbles |
|
Caractéristiques spéciales |
35kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring. |
|
Application |
Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. |
Spécifications
|
Matériau |
EPDM Rubber with Stainless Steel Bracket |
|
Cote de température |
-40 à +65 C |
Classifications
|
Marque de produit |
Elastimold |
|
Standard |
ANSI/IEEE 386 |
Dimensions
|
Grosseur |
4.00 inch (101.6 mm) Center to Center, 9.6 inch (243.8 mm) High, 3.60 inch (91.4 mm) wide |
Documents/outils d'aide
|
Dessin de vente |
