Alternate Catalog No. : F202A-40/0.03 110V
n° de catalogue : 2CSF202199R1400

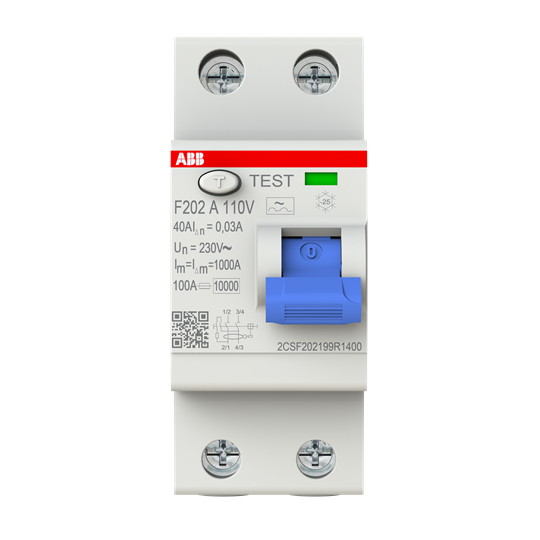

Description: F202 40A 30MA 110V
CUP: 8012542343233
The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V.
Afficher plus
Afficher moins
Pour plus d’informations, visitez:
tnb.ca.abb.com/fr/
Descripteurs
|
Catégorie |
Residual current devices |
Spécifications
|
Number of Poles |
2 |
|
Product Main Type |
F200 |
|
Rated Current |
40 A |
|
Rated Operational Voltage |
277 V AC |
|
Rated Residual Current |
30 mA |
|
Standards |
IEC 61008 |
|
Type of Residual Current |
A type |
Pour plus d’information : Visitez notre bibliothèque et découvrez nos documentations techniques, spécifications, catalogues, brochures, vues 3D,…
