Alternate Catalog No. : DB96
n° de catalogue : 1SAZ901901R1001

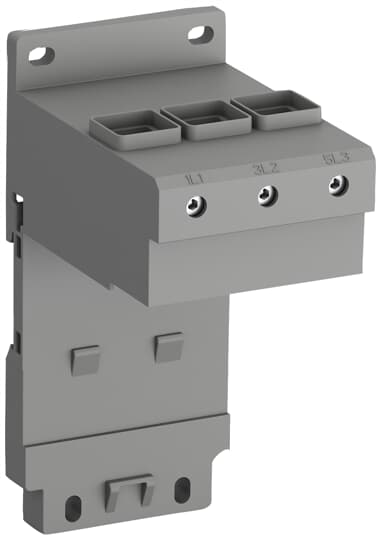

Description: BASE POUR RELAIS ELEC EF96
CUP: 4013614501524
Descripteurs
|
Catégorie |
Overload Relays |
Spécifications
|
Product Name |
Single Mounting Kit |
|
Rated Operational Voltage |
Main Circuit 1000 V AC |
|
Rated Impulse Withstand Voltage |
Main Circuit 8 kV |
|
Rated Insulation Voltage |
1000 V |
|
Number of Poles |
3 |
|
Rated Frequency |
Main Circuit 60 Hz |
|
Degree of Protection |
IP20 |
|
Pollution Degree |
3 |
|
Suitable For |
TF96 |
|
Connecting Capacity Main Circuit |
Flexible with Ferrule 1x 6 ... 50 mm² |
|
Wire Stripping Length |
Main Circuit 22 mm |
|
Tightening Torque |
Main Circuit 6 N·m |
|
Mounting Position |
Position 1 to 6 |
|
Recommended Screw Driver |
M8/Hexagon 4/ |
|
Maximum Operating Voltage UL/CSA |
Main Circuit 600 V AC |
|
Connecting Capacity Main Circuit UL/CSA |
Flexible 1x 8-1 AWG |
|
Resistance to Shock acc. to IEC 60068-2-27 |
11 ms Pulse 25g |
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
Resistance to Vibrations acc. to IEC 60068-2-6 |
5g / 3 ... 150 Hz |
|
Tightening Torque UL/CSA |
Main Circuit 55 in·lb |
Classifications
|
ETIM 5.0 |
EC002498 - Accessories for low-voltage switch technology |
|
ETIM 6.0 |
EC002498 - Accessories for low-voltage switch technology |
|
ETIM 7 |
EC002498 - Accessories for low-voltage switch technology |
|
eClass |
7.0 27379201 |
Dimensions
|
Product Net Width |
70 mm |
|
Product Net Height |
157 mm |
|
Product Net Weight |
0.19kg |
|
Product Net Depth / Length |
102 mm |
Package Information
|
Package Level 1 Units |
1 piece |
|
Package Level 1 Width |
76 mm |
|
Package Level 1 Depth / Length |
111 mm |
|
Package Level 1 Gross Weight |
0.24 kg |
|
Package Level 1 EAN |
4013614501524 |
|
Package Level 1 Height |
160 mm |
Ordering
|
ECN |
N |
|
Customs Tariff Number |
85389099 |
|
ECCN |
N |
|
ABB MDF Code |
3DL - Relays (LV / Control + Protection) |
