Catalog No. : ZAB206MEG

Description:  1/2IN 2HOLE FLAT BRKT EG W MAGNETS

UPC: 616013138212

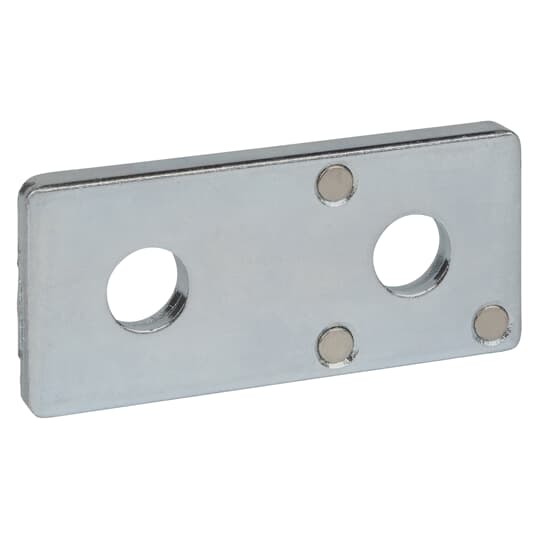

Plate with Magnets, Two Hole Splice, Length 3-1/2 Inch, Width 1-5/8 Inch, Hole Diameter 9/16 Inch, Electro-Galvanized Steel
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Mounting plates

Special Features

Excellent corrosion reisistance

Application

For use in metal framing applications

Specifications

Material

Steel

Finish

Electro-Galvanized

Number Of Holes

2

Plate Type

Splice

Classifications

Brand Name

Superstrut

Dimensions

Mounting Hole Width

9/16 in

Width

1-5/8 in

Length

3-1/2 in

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000483 Coupler for support/profile rail

Suitable for

U-profile

Model

Flat coupler

With screw accessories

N

Material

Steel

Surface protection

Galvanic/electrolytic zinc plated

Number of holes/slots per side

2

Documents/Support Tools

Sales Drawing

Click here
