Catalog No. : TPH-4N
Description: BUSHING PAD
UPC: 783786754199

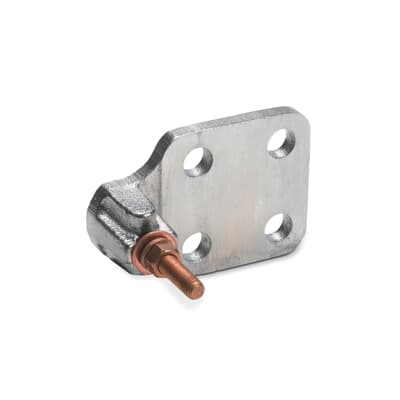

Tin Plated Bronze Transformer Bushing Pad, Four 9/16 inch Diameter Mounting Holes on 1-3/4 inch Centers, Pad Length 3 inch, Width 4-1/2 inch, Pad Thickness 3/8 inch. Height not counting Bolt 1-35/64 inch. Includes Silicone Bronze Hardware: One 3/8-16 x 3 inch Bolt, One 3/8 Inch Lock Washer, One 3/8 inch Flat Washer, One 3/8-16 Nut. One 5/16 x 7/16 x 1/16 O-Ring.
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
Transformer bushings |
|
Type |
Transformer Bushing Pads |
|
Special Features |
Accommodates two or four terminals. Terminals can be bolted to either side of the pad.Pads sit Flush and Interlock with Bushing |
|
Application |
Built for Heavy-Duty jobs and Resists Corrosion |
Specifications
|
Material |
Tin Plated Bronze |
|
Mounting |
4 Mounting Holes - 9/16 inch Diameter |
Classifications
|
Brand Name |
Homac |
Dimensions
|
Size |
Pad 3-1/8 inch long X 3 inch Minimum wide |
