Catalog No. : TMQ830SCUGEN

Description:  30A DUAL MAIN GENERATOR PNL SURFACE

UPC: 783164681086

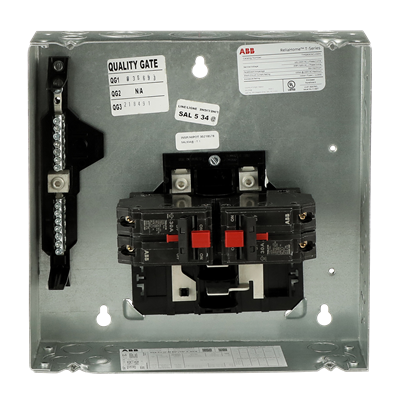

ReliaHome generator panels maintain power to such critical circuits as those for furnace, pump, refrigerator, and lights. It features a connected dual breaker mechanism that ensures that only one source is active at a time. Generator panels ensure safety and convenience when using a generator; with a 14,000 peak wattage, 11,520 continuous load, and 48 amps at 240 volts. The TMQ830SCUGEN features a main breaker, spaces for 8, 1" breakers, a 30A main bus ampere, a copper bus, and a surface enclosure.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Load Centers

GO Schedule

RD

Grouping

Single Phase - USA

Specifications

# Branch Circuit <250A

4

1" Space

4

1/2" Space

0

Amperage

30 A

Circuit Breaker Style

Pigtail (non-PON)

Device type

Main Breaker

Door

Yes

Enclosure

Indoor

Enclosure Type

Indoor, Surface Mount

Factory Installed Ground Kit

Yes

Feed

Either

Input/Output Voltage

120/240V ac

Interrupting Capacity Rating

22

Load Center Type

Generator

Meter Socket Options: 200 Amp Main Breaker Installed

No

Meter Socket Options: High Amp Mode

None

NEMA Rating

NEMA 1

Phase

1 Phase

Service & Voltage

1 Phase, 3 Wire, 120/240V ac

Wires

3 Wire

Classifications

UL/CUL Listing

UL
