Catalog No. : TM42420C

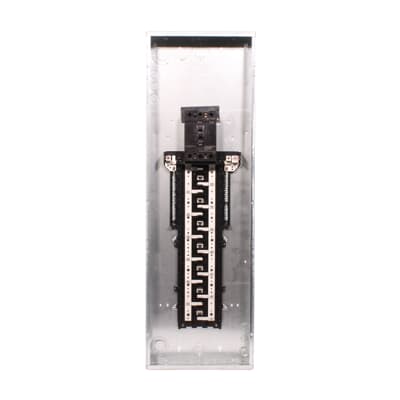

Description:  200A 42CRT 3P4W 208Y/120V 10KIC CMB

UPC: 783164190045

Main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM40420C features spaces for 40, 1" breakers, a 200A main ampere rating, 3 phases, and a combination surface/flush enclosure.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Load Centers

GO Schedule

R7

Specifications

# Branch Circuit <250A

42

1" Space

42

1/2" Space

0

Amperage

200 A

Circuit Breaker Style

Plug-In

Device type

Main Breaker

Door

Yes

Enclosure

Indoor

Enclosure Type

Indoor, Combination

Factory Installed Ground Kit

No

Feed

Top

Input/Output Voltage

208Y/120V ac

Interrupting Capacity Rating

22

Load Center Type

Standard

NEMA Rating

NEMA 1

Phase

3 Phase

Service & Voltage

3 Phase, 4 Wire, 208Y/120V ac

Wires

4 Wire

Classifications

UL/CUL Listing

UL

Dimensions

Depth

3.7 in

Height

43.4 in

Weight

43.2 lb

Width

14.0 in
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
