Catalog No. : TGN3321

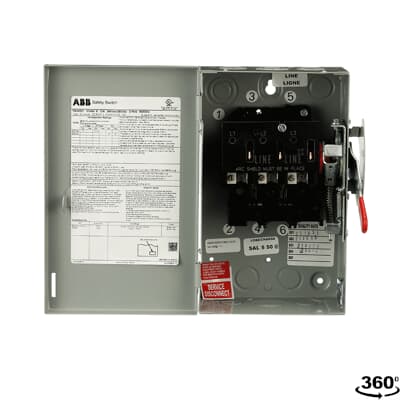

Description: 30A 3P GD N1 240V NONFUSE SWITCH
UPC: 783164008784
Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type GD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism (30-200 amp). 60/75 C conductor rating. TGN3321
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
General Duty |
Specifications
|
Amperage |
30 A |
|
Poles |
3 |
|
Wires |
3 |
|
Fusing |
No Fuse |
|
Enclosure |
NEMA 1 (Indoor) |
|
Wire Range (Cu/Al) |
12-8 AL |
|
240 Vac, NEC Std, 1-ph |
3 |
|
240 Vac, NEC Std, 3-ph |
7.5 |
|
250 Vdc |
5 |
|
GSA Compliance |
Yes |
Classifications
|
cUL Listed |
Yes |
|
UL Listed |
Yes |
Dimensions
|
Height |
10.3 |
|
Depth |
3.3 |
|
Width |
6.4 |
|
Weight |
5 |
| Title | Publication No. | Publication Type |
|---|---|---|
| 1 page outline drawing in .pdf format. |
10103091-SH104 |
Drawings-Outline and Dimensional |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
