Catalog No. : TG3224R

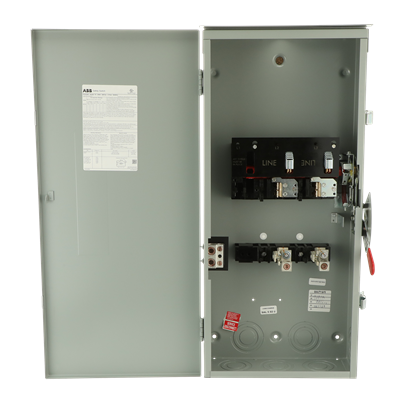

Description: 200A 2P GD N3R 240V FUSIBLE SW
UPC: 783164008548
When it comes to getting the job done right, you can count on safety switches from ABB.
ABB offers a wide variety of general duty switches for residential and light commercial purposes, while the extensive line of heavy-duty switches is best suited for commercial and industrial applications. For the toughest industrial environments — such as cement foundries, steel mills and processing plants — dust-tight and stainless steel switches are available. We also offer a variety of double throw switches for emergency generators.
No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 200A 2P GD N3R 240V FUSIBLE SW
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
General Duty |
Specifications
|
Amperage |
200 A |
|
Poles |
2 |
|
Wires |
3 |
|
Fusing |
Fusible |
|
Enclosure |
NEMA 3R (Outdoor) |
|
Wire Range (Cu/Al) |
2-250 |
|
240 Vac, NEC Std, 1-ph |
15.0 hp |
|
240 Vac, Time Delay, 1-ph |
15.0 hp |
|
GSA Compliance |
Yes |
Classifications
|
cUL Listed |
Yes |
|
UL Listed |
Yes |
Dimensions
|
Height |
28.78 in |
|
Depth |
5.29 in |
|
Width |
13.37 in |
|
Weight |
31.0 lb |
