Catalog No. : TG3221R

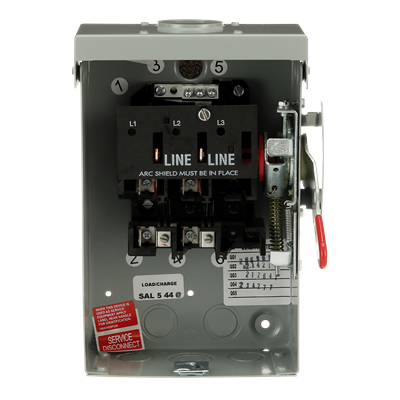

Description: 30A 2P GD N3R 240V SAFETY SWITCH
UPC: 783164008487
When it comes to getting the job done right, you can count on safety switches from ABB.
ABB offers a wide variety of general duty switches for residential and light commercial purposes, while the extensive line of heavy-duty switches is best suited for commercial and industrial applications. For the toughest industrial environments — such as cement foundries, steel mills and processing plants — dust-tight and stainless steel switches are available. We also offer a variety of double throw switches for emergency generators.
No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 30A 2P GD N3R 240V SAFETY SWITCH
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
Category |
General Duty |
Specifications
Amperage |
30 A |
Poles |
2 |
Wires |
3 |
Fusing |
Fusible |
Enclosure |
NEMA 3R (Outdoor) |
Wire Range (Cu/Al) |
12-8 AL |
240 Vac, NEC Std, 1-ph |
1.5 hp |
240 Vac, Time Delay, 1-ph |
3.0 hp |
250 Vdc |
5.0 hp |
GSA Compliance |
Yes |
Classifications
cUL Listed |
Yes |
UL Listed |
Yes |
Dimensions
Height |
9.78 in |
Depth |
3.31 in |
Width |
6.38 in |
Weight |
6.0 lb |
