Catalog No. : TC413X

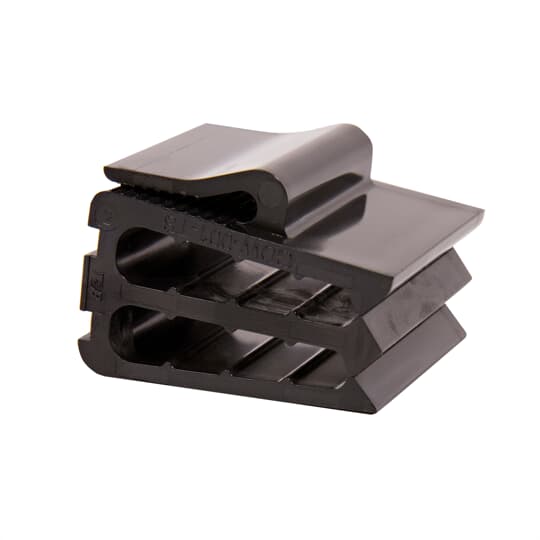

Description:  CABLE CLIP W-STYLE WEATHER RESIST

UPC: 786209803085

Solar Module Cable Clip, W-Shaped Version, Heat-Stabilized Nylon 6.6, Black, Weather Resistant, Operating Temperature -40 to 105 Degrees Celsius (-40 to 220 F), Maximum Cable Diameter 7.87mm (0.31 Inch), Cable Capacity to Eight (8) #10 AWG Solar PV Control Cables
View More View Less
For more info visit:  electrification.us.abb.com
  • Mount up to four #10 AWG Solar PV control cables cleanly and easily - keeping a professional look through panel rotation and vibration.
  • Provides the ability to quickly slip the cables in and out of the clamp for ice removal, readjustment or other maintenance.
  • Quick and easy installation, no tools required. Metal-free construction reduces the need for grounding.
  • Perfect for stength stability in heat of solar applications.
  • Solar Panel projects.

Descriptors

Category

Nylon Cable Clips

Special Features

Mount up to four #10 AWG Solar PV control cables cleanly and easily - keeping a professional look through panel rotation and vibration.

Application

Solar Panel projects.

Specifications

Material

Nylon/Polyamide 6.6 Heat Stabilized

Color

Black

Mounting

Clip

Classifications

Brand Name

Ty-Rap

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000127 Saddle

Number of cables/conduits

8

Model

Half clamp

Type of fastening

Other

Material

Plastic

Material quality

Polyamide (PA)

UV resistant

Y

Colour

Black
