Alternate Catalog No. : SA 6-48
Catalog No. : SA6-48
Description: AL 1HOLE LUG STR DIE 6
UPC: 783786750368

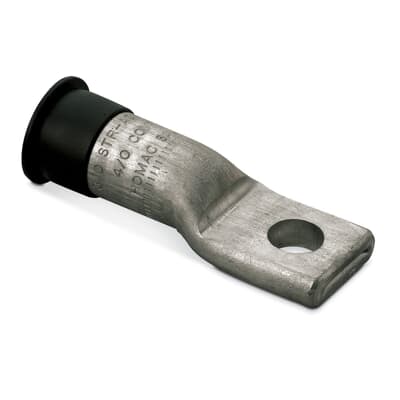

Aluminum One-Hole Lugs - Common Die Series - Straight Lug, Wire Range #6 ACSR - Compressed - Stranded, #4 Solid - Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/63 inch thick. (1) 17/32 inch Diameter hole. Barrel 1-19/64 inch. Oxide Inhibitor. Blue Cap. For Use with 1/2 inch Bolt. Dual Rated for Aluminum and Copper Conductors
View More
View Less
For more info visit:
electrification.us.abb.com
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Descriptors
|
Category |
Wire connectors |
|
Special Features |
Stacking Lugs. Dual Rated. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die References. Meets or Exceeds ANSI C119.4 Specifications |
|
Application |
For General Applications |
Specifications
|
Connection |
Compression |
|
Material |
Aluminum |
|
Finish |
Bare |
|
Insulation |
None |
Classifications
|
Brand Name |
Homac |
Dimensions
|
Wire Size |
#6 STR AWG , #6 COMPR AWG , #4 COMPT AWG |
