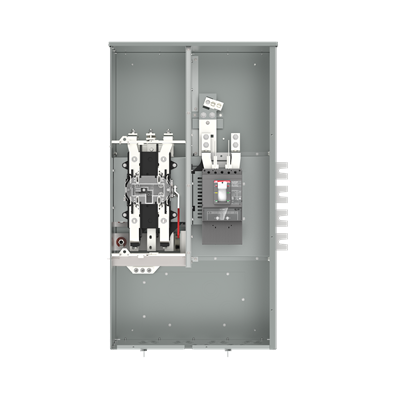

Catalog No. : RMS112140CHLBRB
Description: MTR STACK 1-400A 1PH1PH RNGL LVB +BRKR
UPC: 783164684285
Descriptors
|
Category |
ReliaMod Meter Module |
Specifications
|
Additional Notes |
For tenant breaker load lugs, please refer to breaker specifications |
|
Depth (Inches) |
10.82 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
158 |
|
Height (Inches) |
42.27 |
|
Horizontal Bus Amperage |
1200 A |
|
Main Phase Input |
1-Phase |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Meter Module Tenant Breaker Provisions |
One 400A XT5N TMA 65 KAIC Tenant Breaker Included Factory Installed |
|
No of Sockets |
1 |
|
Socket Amperage |
400 A |
|
Socket Bypass |
Lever |
|
Socket Factory Installed Jaw Configuration |
5-Jaw |
|
Socket Phase Output |
1-Phase |
|
Socket Type |
Ringless |
|
Tenant Ground Lugs (Per each socket) AWG/kcmil Al/Cu |
#6-300 |
|
Tenant Neutral Lugs (Per each socket) AWG/kcmil Al/Cu |
(2) 2/0-500 |
|
Voltage |
120/240V |
|
Width (Inches) |
23.34 |
