Catalog No. : RMM3L12RFTL

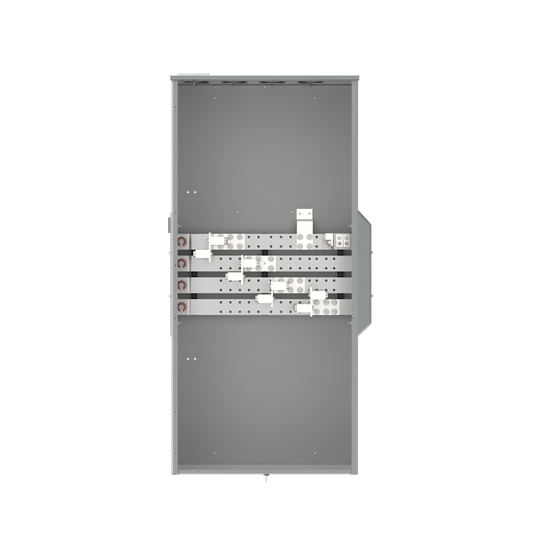

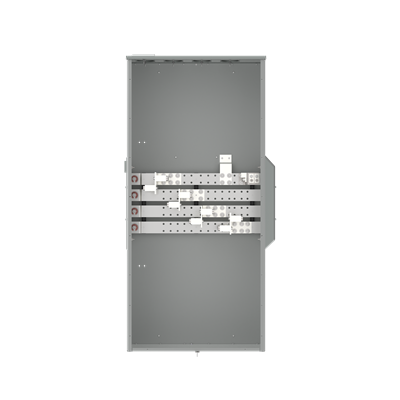

Description: RELIAMOD 3PH 1200A 100K T/B MLO W/FTL
UPC: 783164672602
Descriptors
|
Category |
ReliaMod Feed Through Main Lug Modules |
Specifications
|
Enclosure |
N3R Outdoor |
|
Amperage |
1200 |
|
Phase |
Three-Phase, Four-Wire |
|
Voltage |
208Y/120V |
|
Feed Location |
Bottom/Top |
|
IC Rating |
100 |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(4) #6-350 |
|
Incoming (Line side) Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(5) 250-750 or (10) 3/0 - 250 |
|
Outgoing (Load side) Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(5) 250-750 or (10) 3/0 - 250 |
|
Feed Though Lugs Included |
Yes |
|
Additional Notes |
This MLO unit comes with feed through (load side) lugs factory installed |
|
Height (Inches) |
60.9 |
|
Depth (Inches) |
11.8 |
|
Width (Inches) |
28.8 |
|
Estimated Weight (lbs) |
220 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
