Catalog No. : RMM3FE8RCLL

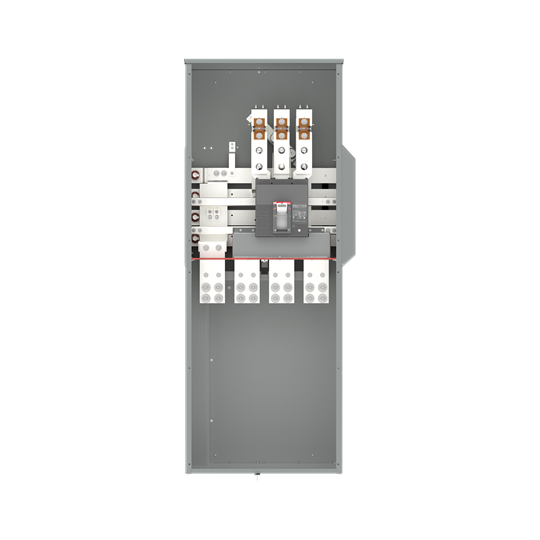

Description: RELIAMOD 3PH 800A 100K EUSERC T MFS+PB
UPC: 783164672732
Descriptors
|
Category |
ReliaMod EUSERC Main Fusible Switch Modules |
Specifications
|
Molded Case Switch Frame |
XT7H-D |
|
Fuse Provision Type |
Class T Fuses Only (Fuses not included) |
|
Enclosure |
N3R Outdoor |
|
Amperage |
800 |
|
Phase |
Three-Phase, Four-Wire |
|
Voltage |
208Y/120V |
|
Feed Location |
Bottom w/Integral Pullbox |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
Lug Landing Pad, Lugs not included |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Lug Landing Pad |
Yes |
|
Euserc Compliant |
Yes |
|
Additional Notes |
(1) Meets EUSERC Requirements. (2) ReliaMod main fusible switch modules include a UL489 molded case switch for on/off function and line side provisions for class T fuses for overcurrent protection. Class T fuses are not included and are to be provided and installed by others. |
|
Height (Inches) |
65.2 |
|
Depth (Inches) |
13.0 |
|
Width (Inches) |
25.0 |
|
Estimated Weight (lbs) |
350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
