Catalog No. : RMM3BL8R

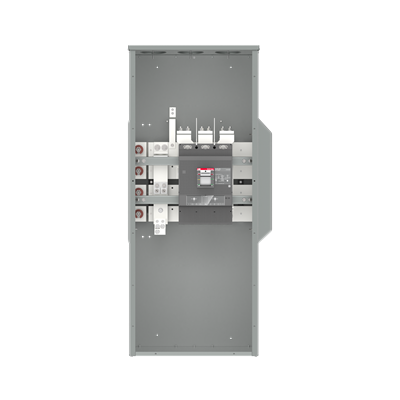

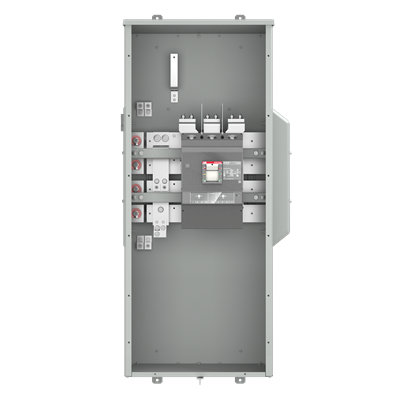

Description: RELIAMOD 3PH 800A 65KAIC MAIN BREAKER
UPC: 783164681789
Descriptors
|
Category |
ReliaMod Main Breaker Modules |
Specifications
|
Amperage |
800 |
|
Depth (Inches) |
11.2 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
160 |
|
Feed Location |
Bottom/Top |
|
Height (Inches) |
47.9 |
|
IC Rating |
65 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(3) 2/0 - 400 |
|
Main Circuit Breaker Frame |
XT6N |
|
Main Circuit Breaker Trip Unit |
TMA |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Phase |
Three-Phase, Four-Wire |
|
Voltage |
208Y/120V |
|
Width (Inches) |
20.3 |
