Catalog No. : RMM3BB20RL

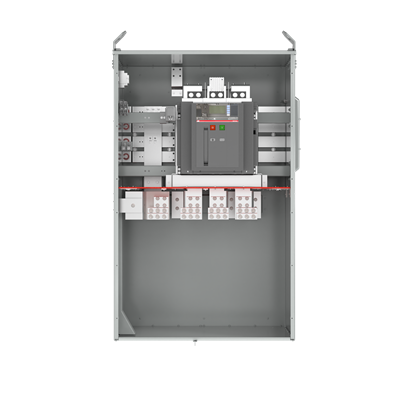

Description: RELIAMOD 3PH 2000A BOT RELT MCB 6-LUG
UPC: 783164716221
Descriptors
|
Category |
ReliaMod Main Breaker Modules |
Specifications
|
Additional Notes |
6 Cable Bottom Feed |
|
Amperage |
2000 |
|
Arc Reduction |
Includes Arc Reduction (RELT) to meet NEC 240.87 |
|
Depth (Inches) |
15.2 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
500 |
|
Feed Location |
Bottom Only |
|
Height (Inches) |
57.1 |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(6) 1/0 - 750 |
|
Main Circuit Breaker Frame |
T8V |
|
Main Circuit Breaker Trip Unit |
PR332/P LSI |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Phase |
Three-Phase, Four-Wire |
|
Voltage |
208Y/120V |
|
Width (Inches) |
25.1 |
