Catalog No. : RMM1P4R

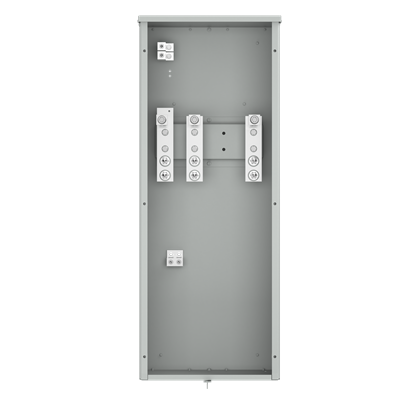

Description: RELIAMOD PULL BOX 400A 1-PHASE
UPC: 783164684353
Descriptors
|
Category |
ReliaMod Pullboxes |
Specifications
|
Enclosure |
N3R Outdoor |
|
Amperage |
400 |
|
Phase |
Single-Phase, Three-Wire |
|
Voltage |
120/240V |
|
Feed Location |
Bottom Only |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
Line Side: Lug Landing Pad, Lugs not included. Load Side: (1) 250-750kcmil / (2) 3/0-250kcmil Mechanical Lugs |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Lug Landing Pad |
Yes |
|
Euserc Compliant |
Yes |
|
Additional Notes |
Meets EUSERC Requirements |
|
Height (Inches) |
43.17 |
|
Depth (Inches) |
7.7 |
|
Width (Inches) |
16.8 |
|
Estimated Weight (lbs) |
80 |
|
Pull Box Connections |
Pull boxes do not come with horizontal bussing to directly bus connect to a main or meter stack. It is for lug in lug out applications. It comes with a line side lug landing pad (lugs not included) and load side mechanical lugs factory installed. Please refer to the bill of material or outline drawings for more details. |
