Catalog No. : RMM1L8R

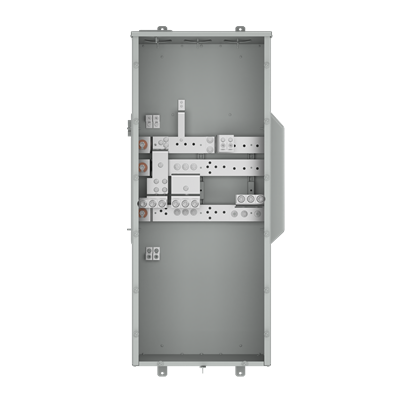

Description: RELIAMOD 1PH 800A 100K TOP/BOTTOM MLO
UPC: 783164672572
Descriptors
|
Category |
ReliaMod Main Lug Modules |
Specifications
|
Enclosure |
N3R Outdoor |
|
Amperage |
800 |
|
Phase |
Single-Phase, Three-Wire |
|
Voltage |
120/240V |
|
Feed Location |
Bottom/Top |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(3) 250-750 or (6) 3/0-250 |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Height (Inches) |
47.9 |
|
Depth (Inches) |
11.2 |
|
Width (Inches) |
20.3 |
|
Estimated Weight (lbs) |
140 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
