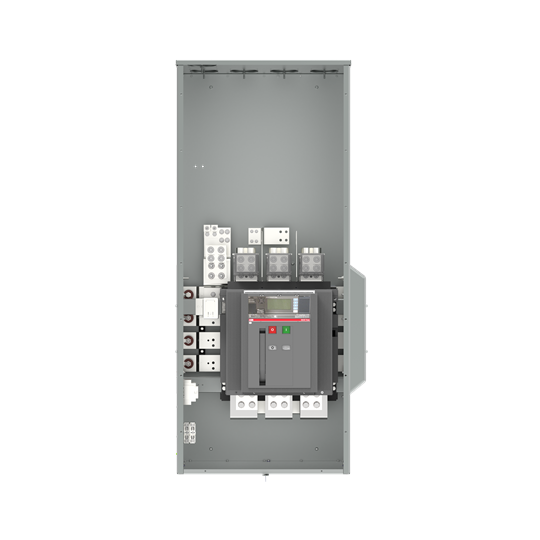

Catalog No. : RMM1BT16R
Description: RELIAMOD 1PH 1600A 100K TOP RELT MCB
UPC: 783164682014
Descriptors
|
Category |
ReliaMod Main Breaker Modules |
Specifications
|
Amperage |
1600 |
|
Arc Reduction |
Includes Arc Reduction (RELT) to meet NEC 240.87 |
|
Depth (Inches) |
14.9 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
510 |
|
Feed Location |
Top Only |
|
Height (Inches) |
59.1 |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(4) 1/0 - 750 |
|
Main Circuit Breaker Frame |
T8V |
|
Main Circuit Breaker Trip Unit |
PR332/P LSI |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Phase |
Single-Phase, Three-Wire |
|
Voltage |
120/240V |
|
Width (Inches) |
25.1 |
