Catalog No. : RMM1BL12R

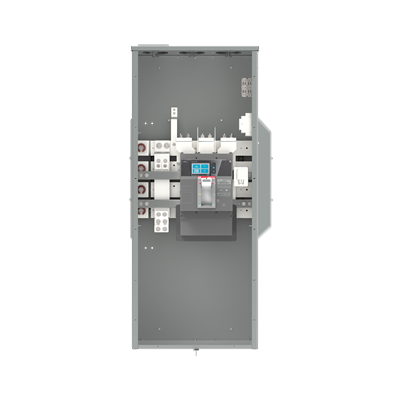

Description: RELIAMOD 1PH 1200A 65K RELT MAIN BRKR
UPC: 783164681697
Descriptors
|
Category |
ReliaMod Main Breaker Modules |
Specifications
|
Additional Notes |
An alternate XT7 frame lug kit is available as needed, catalog # RXT7LUGKIT750, which can accommodate up to (3) 500-750kcmil cables per phase & neutral. |
|
Amperage |
1200 |
|
Arc Reduction |
Includes Arc Reduction (RELT) to meet NEC 240.87 |
|
Depth (Inches) |
11.22 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
180 |
|
Feed Location |
Bottom/Top |
|
Height (Inches) |
47.93 |
|
IC Rating |
65 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(4) 2/0 - 500 |
|
Main Circuit Breaker Frame |
XT7S |
|
Main Circuit Breaker Trip Unit |
Ekip Touch LSI |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Phase |
Single-Phase, Three-Wire |
|
Voltage |
120/240V |
|
Width (Inches) |
20.32 |
