Catalog No. : RMM1BH6R

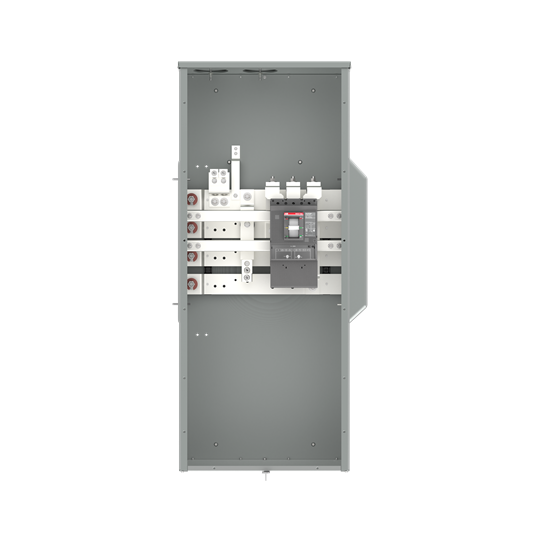

Description: RELIAMOD 1PH 600A 100KAIC MAIN BREAKER
UPC: 783164681659
Descriptors
|
Category |
ReliaMod Main Breaker Modules |
Specifications
|
Amperage |
600 |
|
Depth (Inches) |
11.2 |
|
Enclosure |
N3R Outdoor |
|
Estimated Weight (lbs) |
140 |
|
Feed Location |
Bottom/Top |
|
Height (Inches) |
47.9 |
|
IC Rating |
100 |
|
Lugs Per Phase & Neutral (AWG/kcmil Al/Cu) |
(2) 2/0 - 500 |
|
Main Circuit Breaker Frame |
XT5S |
|
Main Circuit Breaker Trip Unit |
TMA |
|
Main Ground Lugs (AWG/kcmil Al/Cu) |
(2) #6-350 |
|
Meter Mod III to ReliaMod Horizontal Bus Connections |
ABB ReliaMod horizontal bus does not match up to GE Meter Mod III horizontal bus, so any ReliaMod section cannot be connected to any GE Meter Mod III section and vice versa without a bus transition adapter section. Please refer to the ReliaMod bus transition adapters in the Buylog for more information. |
|
Phase |
Single-Phase, Three-Wire |
|
Voltage |
120/240V |
|
Width (Inches) |
20.3 |
