Catalog No. : NW10-8

Description:  NONINS HTM RING TERM, 12-10, NO8, M

UPC: 786210769837

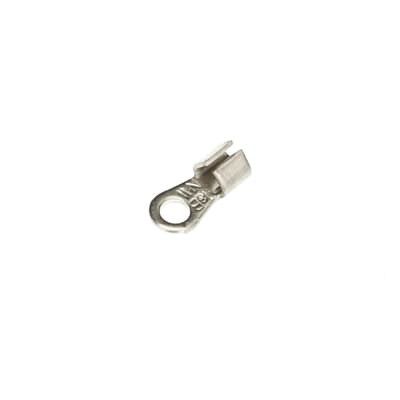

Non-Insulated High-Temperature Ring Terminal, Length .66 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #12-#10 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.
  • Application Tools: WT1377

Descriptors

Category

Electrical terminals

Special Features

For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.

Specifications

Voltage Rating

600 V

Material

Nickel Alloy

Color

Metallic

Classifications

Brand Name

Sta-Kon

Dimensions

Wire Size

12-10 AWG

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 233 Compliant
TSCA TSCA Section 6(h) Compliant

Sustainability

Environmental product declaration

PL-029 Sta-Kon Non-Insulated Power Accessories

PL-029 Dragon Tooth Magnet Wire Termination Systems

PL-029 Sta-Kon Vinyl Insulated Power Accessories – Brass and Silver

PL-029 Sta-Kon nylon insulated power accessories – brass and silver

PL-029 Sta-Kon Nylon Insulated Power Accessories – Brass and Bronze

ETIM EC001052 Solderless copper terminals for copper conductors

Flange shape

Ring shape

Insulation

None

Reel packaging

N

AWG-range

12-10

Surface protection

Bare

Stud size (imperial)

8
