Catalog No. : L-7-50PM-0-C

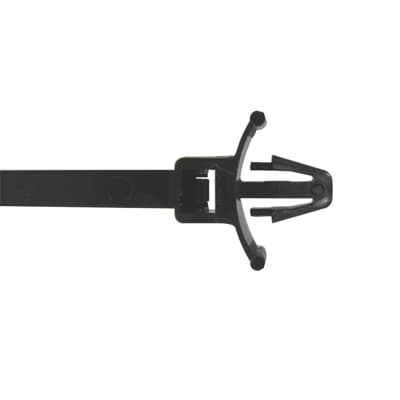

Description:  CABLE TIE 50LB 8IN BLK PSH MT .25IN

UPC: 728494124544

Push Mount Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, Length of 200mm (7.87 Inches), Width of 4.8mm (0.19 Inch), Thickness of 1.3mm (0.05 Inch), Tensile Strength Rating of 222 Newtons (50 Pounds)
View More View Less
For more info visit:  electrification.us.abb.com
  • Push Mounting Head

Descriptors

Category

Push Mount Cable Ties

Specifications

Material

Nylon/Polyamide 6.6

Color

Black

Lock Mechanism

Plastic Pawl

Tensile Strength

50 pounds , 222 newtons

Classifications

Brand Name

Catamount

Dimensions

Width

0.19 in , 4.8 mm

Length

7.87 in , 200 mm

Thickness

0.05 in , 1.3 mm

Bundle Diameter

Max 1.77 in , Max 45 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000046 Cable tie

Band width

4.8 mm

Length belt/tape/tie

200 mm

Length belt/tape/tie

7.87 inch

Tie thickness

1.3 mm

Tie thickness

0.05 inch

Max. bundle diameter

45 mm

Min. holding force

222 N

Operation temperature

-40-+85 °C

Operation temperature

-40-+185 °F

Model

Internal toothing

Band closure

Plastic lip/-cam

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

Type of fastening

Plug-in anchor/plug-in cam

MIL approval

N

UL approval

N

Documents/Support Tools

Sales Drawing

Click here
