Catalog No. : L-28-120-0-L

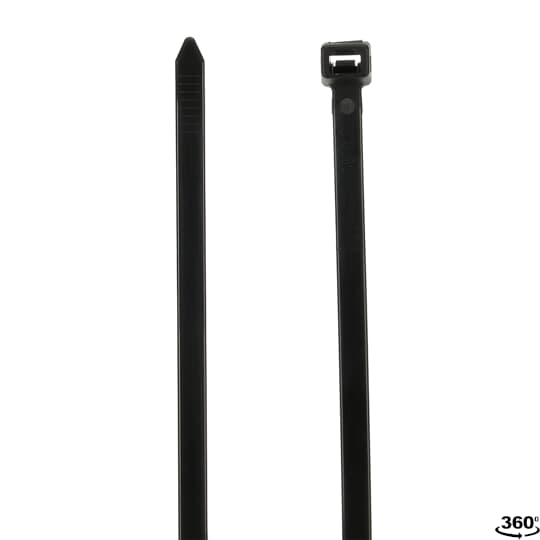

Description:  CABLE TIE 120LB 28 UV BLK 1-PC DIS

UPC: 728494125763

Heavy Duty Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 701.32mm (27.611 Inches), Width of 7.62mm (0.30 Inches), Thickness of 1.91mm (0.075 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
View More View Less
For more info visit:  electrification.us.abb.com
  • Application Tools: ERG120

Descriptors

Category

Cable ties

Specifications

Material

Nylon/Polyamide 6.6 Weather Resistant

Color

Black

Lock Mechanism

Plastic Pawl

Tensile Strength

120 pounds , 534 newtons

Classifications

Brand Name

Catamount

Dimensions

Width

0.3 in , 7.62 mm

Length

27.611 in , 701.32 mm

Thickness

0.075 in , 1.9 mm

Bundle Diameter

0.187 to 8 in , 4.76 to 203 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000046 Cable tie

Band width

7.62 mm

Length belt/tape/tie

701.32 mm

Length belt/tape/tie

27.611 inch

Tie thickness

1.91 mm

Tie thickness

0.075 inch

Min. holding force

534 N

Model

Internal toothing

Band closure

Plastic lip/-cam

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

MIL approval

N

Documents/Support Tools

Sales Drawing

Click here
