Catalog No. : GUP215-TB

Description:  3/4IN EXPROOF JNCTN BOX 6HUBS IRON

UPC: 786210962818

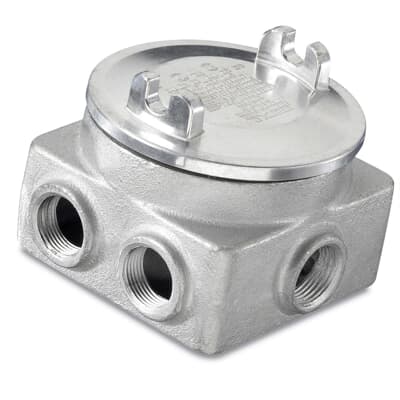

3/4 Inch Gup Explosion Proof Junction Box, Body Material and Finish Ductile Iron Electro Galvanized and Aluminum, Acrylic Paint, Cover Material Copper Free Cast Aluminum, O Ring Neoprene, 6 Hubs (NPT): 2 Top, 2 Bottom and 1 Each Side
View More View Less
For more info visit:  electrification.us.abb.com
  • Compact design
  • O-ring gasket standard for raintight applications
  • Supplied with 3 conduit plugs
  • Junction for conduits in hazardous locations

Descriptors

Category

Outlet box

Special Features

Cover Sealed with Standard "O" Ring Gasket for Raintight Enclosure

Application

Junction for Branch Conduits In Hazardous Locations

Specifications

Number Of Outlet

10

Material

Iron

Knockouts

Yes

Classifications

Brand Name

T&B Rigid Fittings

Standard

UL 1203, CSA

Dimensions

Size

3/4 Inch

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant

Certification/Standard

CLASS File Number Class CCN Certificate Number Library Number
CSA 20012 441802 N/A N/A N/A
UL E202368 N/A QAZV N/A N/A
ETIM EC002600 Box/housing for surface mounting on the wall/ceiling

Shape

Rectangular

Number of inlets

6

Type of housing feed-through

Thread

Material

Other

Colour

Grey

Explosion-tested version

Y

Documents/Support Tools

Sales Drawing

Click here
