Alternate Catalog No. : FSS 4040

Catalog No. : FSS4040

Description:  INSULCVRS TWIN 14-500 14-250 14-250

UPC: 783786725120

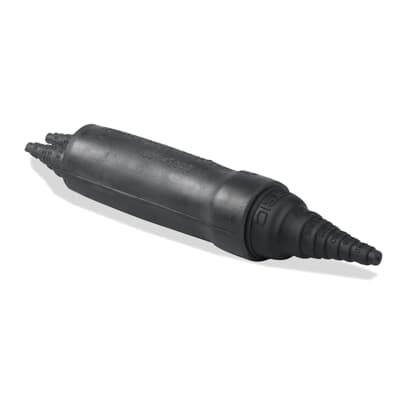

Flood-Seal 3-Wire Insulating Covers-Twin tap, conductor range A #14-500 kcmil, range B #14-250 kcmil, range C #14-250 kcmil. Single Wire Cap to Twin Tower Rocket.
View More View Less
For more info visit:  electrification.us.abb.com
  • Sizes for Most Conductors - Perfect for Copper or Aluminum Conductors Ranging from #14 AWG to 1500 kcmil.
  • Eliminate Taping to Significantly Reduce Labor and Material Cost of Splice Preparation.
  • Rated 600 Volts - Built for Heavy-Duty Loads.
  • RUS Accepted.
  • Easy to Install, Waterproof Twin-Tap Covers.
  • Cut the Proper Cable Rings at Each End of the Twin-Tap Cover and Slide Cover Halves over Cable. The Cover Halves are Mated, Enclosing the Compression Tap in a Waterproof Seal.

Descriptors

Category

Input output connector cover

Special Features

Sizes for most conductors, perfrect for Copper or Aluminum Conductors ranging from #14 AWG to 1500 kcmil. Easy to Install. Waterproof. Eliminate taping to significantly reduce labor and material cost of splice preparation.

Application

Watertight Splice Applications. Rated 600 Volts - built for Heavy-Duty Loads.

Specifications

Material

Santoprene Rubber

Color

Black

Conductor Range

#14 to 500 kcmil , #14 to 250 kcmil

Classifications

Brand Name

Homac

Standard

RUS Accepted

Dimensions

Length

5-1/4 in

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
