Catalog No. : FN-CFB-HB

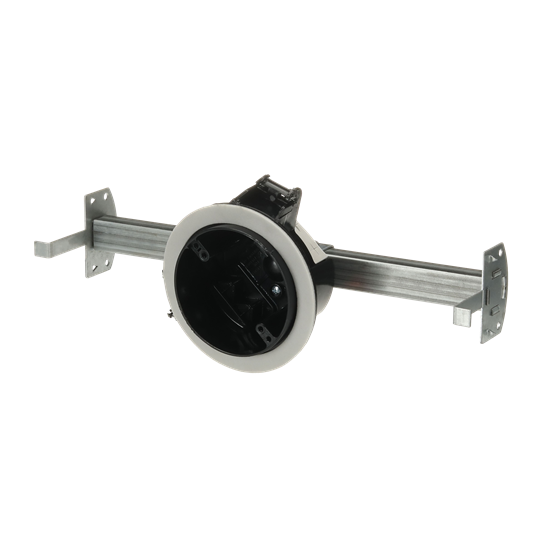

Description:  DRAFT TIGHT CEILING FAN BOX W/BAR

UPC: 34481013327

Round Fan/Fixture Vaportight Box, Volume 26 Cubic Inches, Diameter 4 Inches, Depth 2-3/4 Inches, Color Black, Polycarbonate, Mounting Means #3 Bracket, Mounting Means 16 Inch to 24 Inch Adjustable Hanger Bar
View More View Less
For more info visit:  electrification.us.abb.com
  • Foam gaskets provide a vapor-tight seal at drywall and cable entry points
  • 1/2 Inch offset flange to ensure a flush fit in 1/2 Inch drywall
  • V-clamps provide self-clamping cable entry
  • Hanger bar supports fan and fixtures between joists spaced 16 Inch to 24 Inch

Descriptors

Category

Box/housing for built-in mounting in the wall/ceiling

Special Features

High-strength polycarbonate construction will not shatter when cold

Specifications

Material

Polycarbonate

Color

Black

Cubic Capacity

26 cu in

Knockouts

Yes

Classifications

Brand Name

Carlon / Nutek

Standard

UL E11461
UL E11461

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC002601 Box/housing for built-in mounting in the wall/ceiling

Mounting method

Other

Shape

Round

Construction type

Device connection box (round/square)

Equipped with

Mounting plate

Diameter

4 inch

Mounting switching equipment

Screwing

Pipe locking

N

Pipe locking optional

N

Documents/Support Tools

Instruction Sheet

Click here

Sales Drawing

Click here
