Catalog No. : EXJ360A3279140

Description:  EXJ -EXTRA-FLEXIBLE, 90 DEGREE BEND

UPC: 75114306201

Tinned Copper, 90 Degree Extra Flexible Braid Connector, EXJ Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 11 inch (279 mm) high x 5.5 inch (140 mm) long, 3-1/4 inch (83 mm) wide, 1 inch (25.4 mm) thick. Pad 3-1/4 inch x 3-5/8 inch. 26 Braids in Assembly. 36 AWG Individual Strand.
View More View Less
For more info visit:  electrification.us.abb.com
  • Extra Flexible Links for Heavy Duty Applications.
  • 36 AWG Individual Wire Gauge Size
  • 4 Hole NEMA Pads at 90 Degrees on Both Sides

Descriptors

Category

Flexible braid

Special Features

Extra Flexible Braid, 4-Hole NEMA Pad, 90 Degree Bend

Application

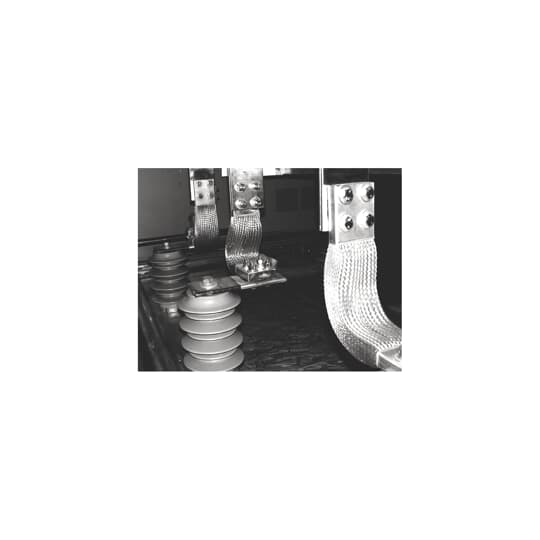

Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars.

Specifications

Conductor Material

Tin-Plated Copper

Conductor Category

Flexible

Shape Of Conductor

Flat

Classifications

Brand Name

Boreal

Standard

IEEE/ANSI C37.34

Dimensions

Cable Width

3-1/4 in , 83 mm

Cable Length

11 in
ETIM EC000839 Braid wire

Conductor material

Copper, tinned

Conductor category

Class 6 = very flexible

Shape of conductor

Flat

Cable width approx.

95 mm

Cable width approx.

3.75 inch

Cable height approx.

279 mm
