Catalog No. : EACT-1250

Description:  15-35KV 600-900A SHEARBOLT CONN1250

UPC: 75114343589

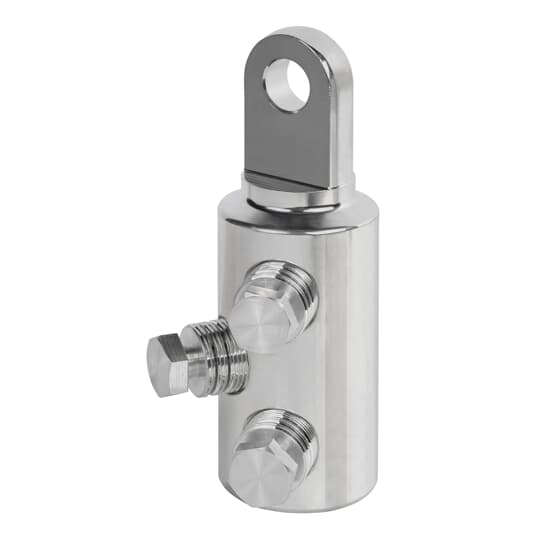

15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 750 to 1250 kcmil. Barrel Body Diameter 2.05 Inch (52mm), Length 6.10 inch (155mm), 1-Hole Width 1.38 inch (35mm), .5 inch Thick, Hole Diameter 0.689 inch (17.5mm). Includes three M24 x 1.5 Round Bottom Screws with Hex Head.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Mechanical connector lug and cap

Special Features

Installs using a standard Wrench and Socket. Special design with grooves for an optimal contact. Designed and tested for use on both aluminum and copper conductors.

Application

IEEE 386 Separable Connectors. 600/900 Amp Elbow Connectors, Vault Stretcher and Straight receptacles form 15, 25 and 35 kV. Solid and Stranded Aluminum and Copper Conductors.

Specifications

Conductor Range

750 to 1250 kcmil

Color

Tin

Classifications

Brand Name

ELASTIMOLD

Standard

IEEE 386 Separable Connector

Dimensions

Length

6.10 in , 155 mm

Width

2.05 in , 52 mm

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
