Catalog No. : EACT-0300

Description:  15-35KV 600-900A SHEARBOLT CONN0300

UPC: 75114343558

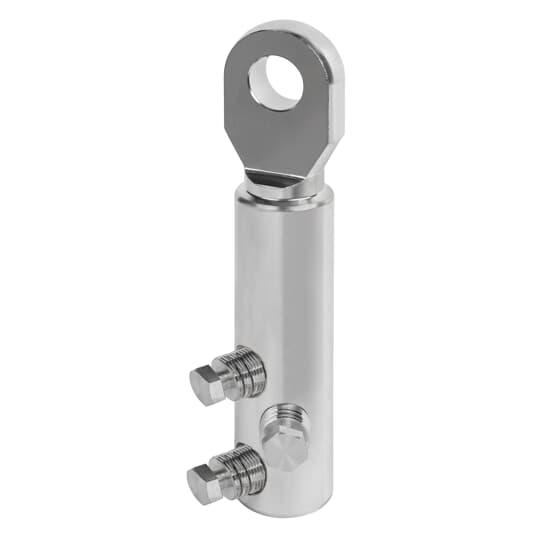

15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for #2 to 300 kcmil. Barrell Body Diameter 1.18 Inch (30mm), Length 4.13 inch (105mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick, Pad Hole Diameter 0.689 inch (17.5mm). Includes Three M14 x 11 Round-Bottom Screws with 3/8 Hex Head.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Mechanical connector lug and cap

Special Features

Installs using a standard Wrench and Socket. Special design with grooves for an optimal contact. Designed and tested for use on both aluminum and copper conductors.

Application

IEEE 386 Separable Connectors. 600/900 Amp Elbow Connectors, Vault Stretcher and Straight receptacles form 15, 25 and 35 kV. Solid and Stranded Aluminum and Copper Conductors.

Specifications

Conductor Range

#2 AWG , 300 kcmil

Color

Tin

Classifications

Brand Name

ELASTIMOLD

Standard

IEEE 386 Separable Connector

Dimensions

Length

4.13 in , 105 mm

Width

1.18 in , 30 mm

Compliance and Certifications

RoHS Out of scope of RoHS
TSCA TSCA Section 6(h) Compliant
