Catalog No. : CPS421212

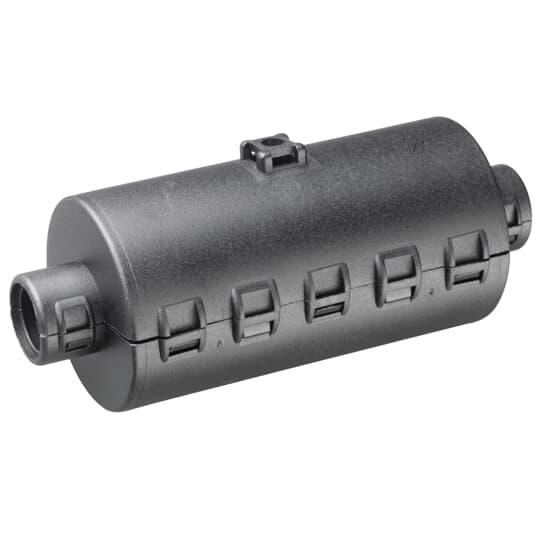

Description:  CONNECTOR SHROUD(421212)

UPC: 5020963036446

Hinged Protective Shroud, Straight, Conduit Size A: NC12/NW10, Side B: NC12/NW10, Internal Diameter 43mm, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Electrical conduit coupling

Application

Protection for In-Line Connectors, Fuse Links, Circuit Breakers and Splicing Areas

Specifications

Installation Type

Externally Hinged

Material

Polyamide/Nylon

Color

Black

Classifications

Brand Name

Harnessflex

Standard

RoHS Compliant, Complies with End of Life Vehicle (ELV) Directive EU 2000/53/EC

Dimensions

Trade Size

NC12/NW10

Inside Diameter

43 mm

Compliance and Certifications

RoHS RoHS3 Compliant
ETIM EC001172 Coupler for corrugated plastic hoses

Material

Plastic

Material quality

Polyamide (PA)

Degree of protection (IP)

IP40

Model

Straight

Nominal size

12-12 mm

Colour

Black
