Catalog No. : CIC-8446

Description:  C-8446 ROUND ALUM BOX

UPC: 622538814463

Made or assembled in Canada.

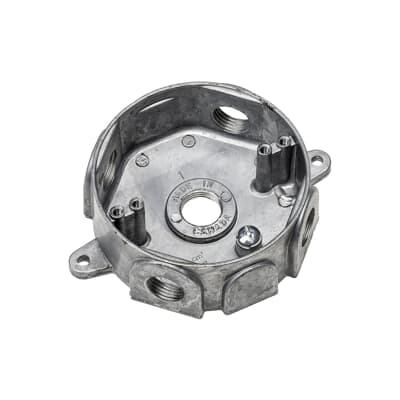

Round Weatherproof Junction Box, Diameter 4 Inches, Depth 1-5/8 Inches, Hub Size 3/4 Inch on the Side and 1/2 Inch on the Bottom, Aluminum, 5 Openings, 2 Lugs, Includes Cover, Gasket, Plugs and Mounting Screws.
View More View Less
For more info visit:  electrification.us.abb.com
  • Made or assembled in Canada.

Descriptors

Category

Weatherproof boxes

Application

For branch conduits

Specifications

Material

Cast Aluminum

Knockouts

Yes

Classifications

Brand Name

Red Dot

Sub Brand

IBERVILLE

Standard

CSA 5043
CSA 5043

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC002601 Box/housing for built-in mounting in the wall/ceiling

Mounting method

Other

Shape

Round

Construction type

Device connection box (round/square)

Equipped with

None

Diameter

4 inch

Mounting switching equipment

Screwing

Pipe locking

N

Pipe locking optional

Y

Inlet from the rear

Y

Material

Aluminium

Surface protection

Other

Cover attachment

Screwed
