Catalog No. : BC2304-LHTQ-3

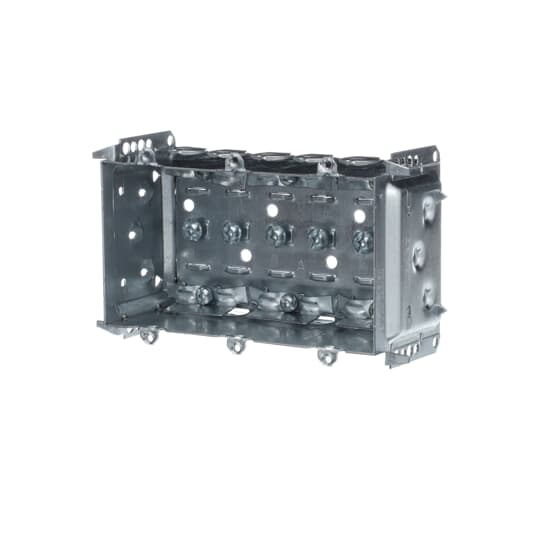

Description: DVICE BOX 2-1/2IN DEEP 3G 39.5CU IN
UPC: 622538101532
With their additional cubic capacity, this family of boxes is designed for any installations that require a greater number of conductors such as heating, GFCI and arc-fault applications. What's more, because it's an LHTQ, installation is always fast and accurate. Look for these practical and time saving features on all LHTQ models.
- Made or assembled in Canada.
Descriptors
|
Category |
Switch box |
|
Application |
Armoured and Nonmetallic Sheathed Cable Clamps |
Specifications
|
Material |
Steel |
|
Color |
Silver |
|
Cubic Capacity |
39.5 cu in |
|
Number Of Outlet |
3 |
Classifications
|
Brand Name |
Iberville |
|
Standard |
CSA 5043 |
Dimensions
|
Size |
3 inches Height x 5-1/2 inches Width x 2-1/2 inches Depth |
|
Assembly arrangement |
Surface mounted housing |
|
Mounting direction |
Horizontal |
|
Material |
Metal |
|
Colour |
Silver |
|
Transparent |
N |
|
Width of device |
50.8 mm |
|
Height of device |
76.2 mm |
