Catalog No. : B418AR-UPC

Description:  4 SQUARE ZIP BX W/NA RET

UPC: 34481021520

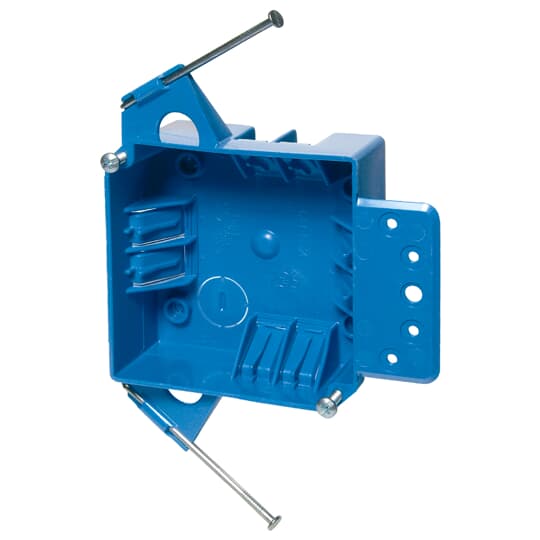

Square New Work Outlet Box, Volume 18 Cubic Inches, Length 4 Inches, Width 4 Inches, Depth 1-5/8 Inch, Color Blue, Material Thermoplastic, Mounting Means Captive Nails
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Outlet box

Special Features

PVC construction for easier installation, greater performance and lower installation cost

Application

Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code

Specifications

Material

Thermoplastic

Color

Blue

Mounting

Captive Nails

Cubic Capacity

18 cu in

Knockouts

Yes

Classifications

Brand Name

Carlon / Nutek

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 240 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC002601 Box/housing for built-in mounting in the wall/ceiling

Mounting method

Other

Shape

Square

Construction type

Device connection box (round/square)

Equipped with

None

Length

4 inch

Width

4 inch

Mounting switching equipment

Screwing

With screws

N

Pipe locking

N

Pipe locking optional

N

Inlet from the rear

N

Material

Plastic

Colour

Blue

Sealable

N

Documents/Support Tools

Sales Drawing

Click here
