Catalog No. : 540002

Description:  CK PARALLEL SPLICE 52600/83700 CMIL

UPC: 786209923608

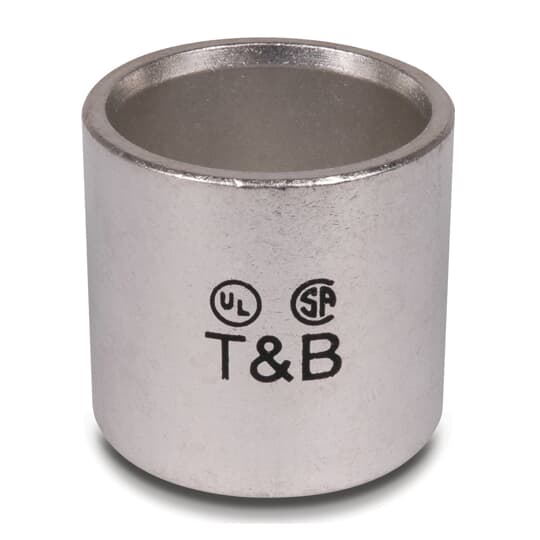

Copper Parallel Splice, Wire Range Min: (3) #8 and (1) #14, Max: (2) #4, Circular Mil Range 52,600 - 83,700, Length 0.64 Inches (16.25mm), O.D. 0.521 (13.23mm), Inches, I.D. 0.396 Inches (10.06mm), Tin Plated
View More View Less
For more info visit:  electrification.us.abb.com
  • Accomodates multiple wire sizes from 22 AWG to 500 kcmil for application flexibility. Easy to install with standard compression crimp tools.
  • Chamfered barrel ends eliminate high-voltage corona and partial discharge failures. 99.9 percent pure copper for low resistance and high conductivity - tin-plated for corrosion resistance.
  • Application Tools: TBM8750M1, TBM8750BSCR

Descriptors

Category

Wire or cable compression splice

Special Features

Accomodates multiple wire sizes from 22 AWG to 500 kcmil for application flexibility. Easy to install with standard compression crimp tools.

Specifications

Material

Copper

Finish

Tin Plated

Voltage Rating

600 V

Insulation

None

Classifications

Brand Name

Color Keyed / Blackburn

Standard

UL E9809
UL E9809

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 240 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC001059 Crimp splices for copper conductor

Material

Copper

Surface protection

Tinned

Insulation

None

Voltage level

Up to 35 kV

Type of connection

Parallel connector
