Catalog No. : 502-G

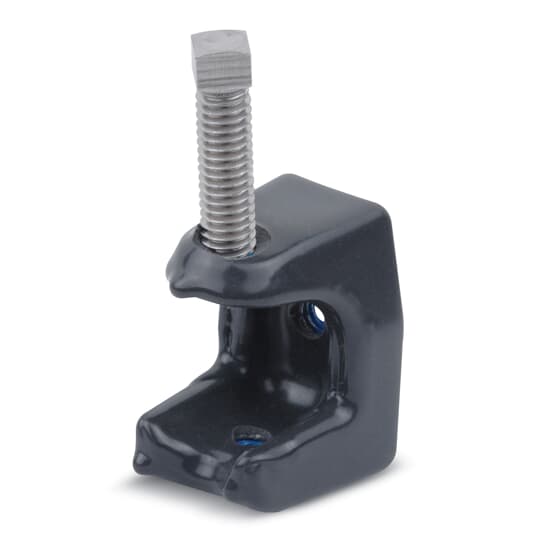

Description:  BEAM CLAMP, JAW OPENING 1IN GRAY

UPC: 704508436667

PVC Coated Hanger Rod Beam Clamp, Jaw Opening 1 Inch/25.40 Millimeters, Load Rating 1,300 Pounds/589.67 Kilograms, Base 2 Inch x 2 Inch, Malleable Iron, Gray
View More View Less
For more info visit:  electrification.us.abb.com
  • Malleable iron construction

Descriptors

Category

Beam clamps

Special Features

PVC Coating for Corrosion Protection

Application

Used to Support and Attach Conduit Runs to Structural Beams

Specifications

Material

Malleable Iron

Maximum Load

1,300 pounds , 589.67 kg

Maximum Jaw Opening

1 in , 25.40 mm

Finish

PVC Coated

Color

Gray

Classifications

Brand Name

Ocal

Standard

CSA LR-52208

Dimensions

Size

2 Inch

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000464 Fixing clamp

Type of fastening

Screwing

Connection type construction part

Other

Tube/cable diameter

25.40-25.40 mm

Hinging

N

Material

Other

Surface protection

Coated
